Tabs

The Tabs component groups related content into separate panels. Selecting a tab displays its associated content.

Basic usage

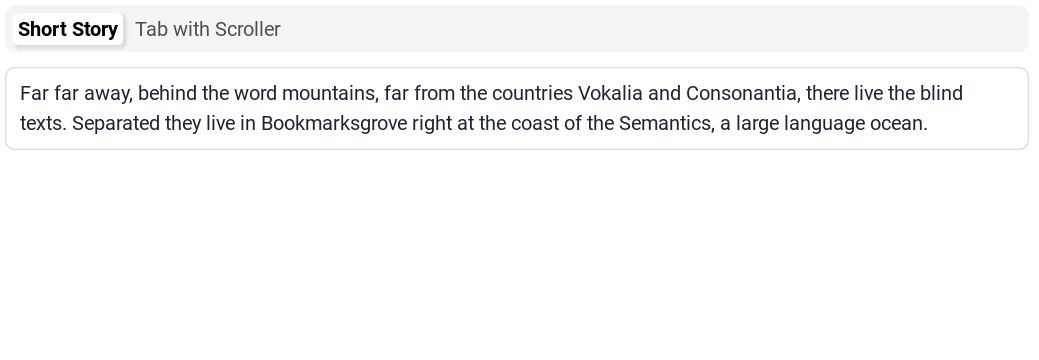

With a scroller

Use a Scroller inside Tabs.Content when the panel contains more content than the available space.

import React from "@rbxts/react";
import { Scroller, Tabs, Text } from "@rbxts/react-clean-ui";

export function ScrollableTabsExample() {
    return (
        <Tabs>
            <Tabs.List>
                <Tabs.Title value="scrollable" text="Scrollable" />
            </Tabs.List>
            <Tabs.Body>
                <Tabs.Content value="scrollable">
                    <Scroller height="200">
                        <Text text="Long scrollable content..." />
                    </Scroller>
                </Tabs.Content>
            </Tabs.Body>
        </Tabs>
    );
}

Because a Tabs.Content panel stays mounted while hidden rather than unmounting, a Scroller's scroll position is preserved when switching away from its tab and back.

Controlled selection

By default Tabs manages its own selection. Pass value to control it from outside: the selected tab is then always value, and clicking a title only calls onValueChange with that title's value. Feed the new value back to actually switch tabs.

import React from "@rbxts/react";
import { Button, Tabs, Text, VStack } from "@rbxts/react-clean-ui";

export function ControlledTabsExample() {
    const [tab, setTab] = React.useState("first");

    return (
        <VStack>
            <Button text="Go to second tab" Event={{ Activated: () => setTab("second") }} />
            <Tabs value={tab} onValueChange={setTab}>
                <Tabs.List>
                    <Tabs.Title value="first" text="First Tab" />
                    <Tabs.Title value="second" text="Second Tab" />
                </Tabs.List>
                <Tabs.Body>
                    <Tabs.Content value="first">
                        <Text text="Content for the first tab." />
                    </Tabs.Content>
                    <Tabs.Content value="second">
                        <Text text="Content for the second tab." />
                    </Tabs.Content>
                </Tabs.Body>
            </Tabs>
        </VStack>
    );
}

onValueChange can also be used without value, to observe clicks while Tabs stays uncontrolled.

Equal-width titles

Set fill on Tabs.List to make every title share the list's width equally, regardless of text length. Each title's text is centred within its share.

<Tabs>
    <Tabs.List fill>
        <Tabs.Title value="stats" text="Stats" />
        <Tabs.Title value="inventory" text="Inventory" />
        <Tabs.Title value="achievements" text="Achievements" />
    </Tabs.List>
    <Tabs.Body>
        {/* ... */}
    </Tabs.Body>
</Tabs>

Without fill, each title is sized to fit its text.

Placing tabs in a card header

Tabs.List and Tabs.Body don't need to be siblings — each reads the current selection from Tabs via context wherever it's mounted, so the button bar and the content panel can live in entirely different parts of the layout. This makes it possible to put the buttons in a Card.Header while the panel content lives in the Card.Body:

import React from "@rbxts/react";
import { Card, Tabs, Text } from "@rbxts/react-clean-ui";

export function TabsInCardHeaderExample() {
    return (
        <Tabs>
            <Card>
                <Card.Header>
                    <Tabs.List>
                        <Tabs.Title value="profile" text="Profile" />
                        <Tabs.Title value="settings" text="Settings" />
                    </Tabs.List>
                </Card.Header>
                <Card.Body>
                    <Tabs.Body>
                        <Tabs.Content value="profile">
                            <Text text="Profile content..." />
                        </Tabs.Content>
                        <Tabs.Content value="settings">
                            <Text text="Settings content..." />
                        </Tabs.Content>
                    </Tabs.Body>
                </Card.Body>
            </Card>
        </Tabs>
    );
}

The only rule is that a Tabs.Title and the Tabs.Content it should reveal share the same value; nesting and rendering order don't matter.

Structure

Tabs is composed from four independent child components:

• Tabs.List is the themed button bar. It renders whatever children it's given — typically one or more Tabs.Title elements.
• Tabs.Title is a single tab button. Its value is matched against a Tabs.Content's value to pair them.
• Tabs.Body is the themed content panel. It renders whatever children it's given — typically one or more Tabs.Content elements.
• Tabs.Content renders its children only while its value matches the currently selected Tabs.Title.

Tabs itself wraps its children in a VStack, so the default buttons-above-content layout doesn't need an extra wrapper around Tabs.List and Tabs.Body.

Tabs

Tabs.List

Shared props

Tabs.Title

Shared props

Tabs.Body

Shared props

Tabs.Content

Behaviour

• The first Tabs.Title to mount is selected by default. Set defaultValue on Tabs to choose a different initial tab.
• When value is set, clicking a title does not change the selection by itself; only a new value does. A value that matches no title shows no panel, and titles never claim the selection on mount.
• onValueChange fires on every title click, including clicks on the already-selected title. It never fires for the initial selection or for defaultValue.
• If the selected Tabs.Title unmounts, the selection is not moved to another tab.
• Every Tabs.Content stays mounted at all times — switching tabs toggles visibility rather than mounting and unmounting, so a panel's local state (such as a Scroller's scroll position) is preserved when switching away and back.
• Hovering or selecting a Tabs.Title switches its background, border, gradient, and text colors to the theme's hover/focus intent states.
• fill only affects titles rendered inside that Tabs.List.

Theme values

Tabs reads its appearance from theme.components.tabs:

• gap — pixel gap between the direct children of Tabs (normally Tabs.List and Tabs.Body). Unset uses the default VStack gap. Negative values make them overlap. Has no effect when Tabs.List/Tabs.Body are placed elsewhere, such as in a Card.
• borderColor, borderThickness, cornerRadius, spacing, padding, backgroundImage, and backgroundGradient — style Tabs.Body. A borderThickness of 0 renders no border.
• list.backgroundColor, list.backgroundTransparency, list.backgroundImage, list.backgroundGradient, list.cornerRadius, list.spacing, and list.padding — style the Tabs.List bar.
• list.gap — pixel gap between titles. Unset uses the default HStack gap. This is separate from list.spacing, which only controls the bar's padding.
• button.spacing, button.padding, button.boxShadow, and button.typography — style each title button.
• button.cornerRadius — either a single size or a per-corner object { topLeft?, topRight?, bottomLeft?, bottomRight? }. With the per-corner object, any corner you leave out uses list.cornerRadius. A single size is ignored, and every corner uses list.cornerRadius. When every corner resolves to 0, no UICorner is added.
• button.borderThickness — thickness of the title button's inner border. 0 (the value in every shipped theme) renders no border.
• button.intents.primary.default, .hover, and .focus — the unselected, hovered, and selected title states. Each state can set textColor, backgroundColor, backgroundTransparency, borderColor, borderThickness (overrides button.borderThickness), backgroundImage, backgroundGradient, and boxShadow. Titles always use the primary intent.

A UIGradient multiplies the background colour, so a state that sets backgroundGradient should also set backgroundColor to white and backgroundTransparency to 0.

Tabs sitting on the panel

A common look puts the titles directly on top of the panel: an outline around both, rounded top corners on the titles, and a gradient on the selected title only. You can get close to this with theme values alone.

A UIStroke can't leave out one side, and there's no per-side border. So the recipe overlaps the title row onto the body by exactly the border thickness (gap: -3 with a 3px border). The bottom of each title's border then sits on the top of the body's border, and the two draw as one 3px line.

The limitation: that shared line also runs under the selected title, so the selected tab doesn't open into the panel.

This example extends WoodenTheme:

import { WoodenTheme, extendTheme } from "@rbxts/react-clean-ui";

const TabsOnPanelTheme = extendTheme(WoodenTheme, {
    components: {
        tabs: {
            gap: -3,
            borderColor: Color3.fromHex("#331D07"),
            borderThickness: 3,
            cornerRadius: 0,
            list: {
                backgroundTransparency: 1,
                backgroundImage: { image: "" },
                padding: "0px",
                cornerRadius: 0,
            },
            button: {
                borderThickness: 3,
                cornerRadius: { topLeft: 8, topRight: 8, bottomLeft: 0, bottomRight: 0 },
                intents: {
                    primary: {
                        default: {
                            textColor: Color3.fromHex("#D3CBA3"),
                            borderColor: Color3.fromHex("#331D07"),
                            backgroundColor: Color3.fromHex("#5C3A18"),
                            backgroundTransparency: 0,
                            backgroundImage: { image: "" },
                        },
                        hover: {
                            textColor: Color3.fromHex("#D3CBA3"),
                            backgroundTransparency: 0,
                        },
                        focus: {
                            textColor: Color3.fromHex("#FFF7CF"),
                            backgroundColor: Color3.fromHex("#FFFFFF"),
                            backgroundTransparency: 0,
                            backgroundGradient: {
                                colors: [Color3.fromHex("#BA854A"), Color3.fromHex("#A16B30"), Color3.fromHex("#7A4A20")],
                                stops: [0, 0.48, 1],
                                rotation: 90,
                            },
                        },
                    },
                },
            },
        },
    },
});

• gap only overlaps the two when Tabs.List and Tabs.Body are direct children of Tabs.
• list.padding must be 0 at the bottom. Otherwise the padding pushes the titles away from the body and the borders no longer line up.
• WoodenTheme puts images on the list and the buttons. A theme merge can't remove a key, so set image: "" to clear them.
