Row / Column

Grid System

The <Row> and <Column> components provide a responsive grid system inspired by Bootstrap.

Every row is divided into 12 equal columns. Each Column occupies a number of those columns using its span property. When the total span exceeds 12, additional columns automatically wrap onto the next line.

For example:

• span={12} – Full width
• span={6} – Half width (2 columns per row)
• span={4} – One third width (3 columns per row)
• span={3} – One quarter width (4 columns per row)

12
████████████

6 + 6
████████  ████████

4 + 4 + 4
█████  █████  █████

3 + 3 + 3 + 3
████  ████  ████  ████

If you don't specify a span, the available width is divided equally between all columns in the row.

Responsive layouts

Rather than giving a column a single width, you can specify different widths for different screen sizes.

The available breakpoints are:

As the viewport grows, the column automatically changes size using the nearest matching breakpoint.

For example:

<Column
    span={{
        md: 6,
        lg: 3,
    }}
>

This means:

• On medium screens (md), the column occupies 6 grid units (half the row).
• On large screens (lg) and above, it occupies 3 grid units (one quarter of the row).

If four columns use this configuration:

• Medium screens display 2 columns per row.
• Large screens display 4 columns per row.

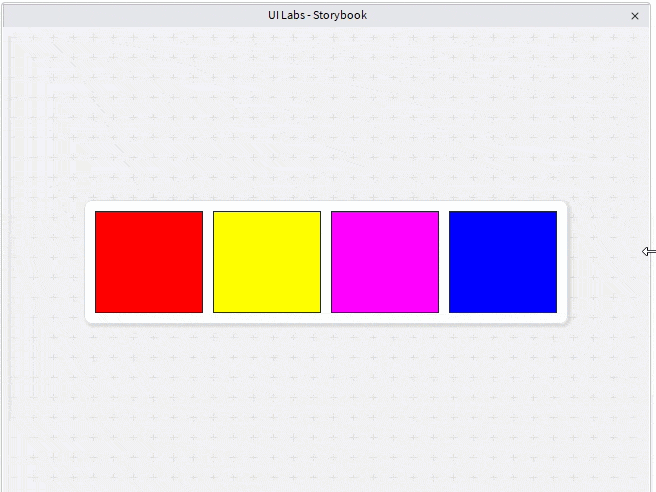

Example

<Container width="75%" center="50%">
    <Box>
        <Row>
            <Column span={{ md: 6, lg: 3 }}>
                <frame
                    Size={new UDim2(1, 0, 0, 100)}
                    BackgroundColor3={Color3.fromHex("#FF0000")}
                />
            </Column>

            <Column span={{ md: 6, lg: 3 }}>
                <frame
                    Size={new UDim2(1, 0, 0, 100)}
                    BackgroundColor3={Color3.fromHex("#FFFF00")}
                />
            </Column>

            <Column span={{ md: 6, lg: 3 }}>
                <frame
                    Size={new UDim2(1, 0, 0, 100)}
                    BackgroundColor3={Color3.fromHex("#FF00FF")}
                />
            </Column>

            <Column span={{ md: 6, lg: 3 }}>
                <frame
                    Size={new UDim2(1, 0, 0, 100)}
                    BackgroundColor3={Color3.fromHex("#0000FF")}
                />
            </Column>
        </Row>
    </Box>
</Container>

Setting Breakpoints

By default the theme has sizes for the different breakpoints under /src/Theme/themes/default.theme.ts you can see this section:

breakpoints: {
        xs: 100,
        sm: 200,
        md: 300,
        lg: 400,
        xl: 500
    },

For means, for example, if the Row width containing the columns is between 400px and 500px it is considered lg. You can change these settings by using a custom theme.

You can also pass custom breakpoints into the Row, such as this:

<Row breakpoints={
    {
        xs: 200,
        sm: 250,
        md: 350,
        lg: 550,
        xl: 700
    }
}>
    <Column>
        ...
    </Column>
</Row>
