Icon

Display scalable, theme-aware icons with optional rotation and continuous spinning animation.

The Icon component displays an icon from the active theme's icon set.

Icons support theme-based sizing, custom colors, fixed sizes, rotation, and continuous spinning animations.

Import

import { Icon } from "@rbxts/react-clean-ui";

Basic usage

Use the icon prop to select an icon.

<Icon icon="check" />

The icon is resolved from the active theme's icons collection. If the active theme does not define the requested icon, the component falls back to DefaultIconSet.

Examples

Basic icon

<Icon icon="home" />

Custom color

Use the color prop to change the icon color.

<Icon
    icon="heart"
    color={Color3.fromHex("#EF4444")}
/>

By default, icons are rendered in white.

Scale

Use the scale prop to select a size from the active theme's iconSize configuration.

<HStack spacing="md">
    <Icon icon="star" scale="xs" />
    <Icon icon="star" scale="sm" />
    <Icon icon="star" scale="md" />
    <Icon icon="star" scale="lg" />
    <Icon icon="star" scale="xl" />
</HStack>

When scale is not provided, the component uses theme.default.scale.

Custom size

Use the Roblox Size property when the icon needs a specific size rather than a theme scale.

<Icon
    icon="camera"
    Size={UDim2.fromOffset(48, 48)}
/>

A custom Size takes precedence over the size calculated from scale.

Rotation

Use Rotation to rotate an icon by a fixed number of degrees.

<Icon
    icon="arrow-right"
    Rotation={90}
/>

Rotation also accepts a React binding.

const [rotation, setRotation] = React.useBinding(0);

<Icon
    icon="refresh"
    Rotation={rotation}
/>

Spinning icon

Set spinning to continuously rotate the icon.

<Icon
    icon="spinner"
    spinning
/>

This is useful for loading indicators, refresh states, and background operations.

Spin speed

Use speed to control how many seconds a complete rotation takes.

<Icon
    icon="spinner"
    spinning
    speed={0.5}
/>

Lower values produce a faster animation.

<VStack spacing="md">
    <Icon icon="spinner" spinning speed={0.5} />
    <Icon icon="spinner" spinning speed={1} />
    <Icon icon="spinner" spinning speed={2} />
</VStack>

The default speed is 1 second per rotation.

Loading indicator

<HStack spacing="sm">
    <Icon
        icon="circle-o-notch"
        spinning
        color={Color3.fromHex("#FFFFFF")}
    />

    <Text text="Loading..." />
</HStack>

Icon button

Icons can be used by components such as Button.

<Button>
    <Icon icon="download" />
    <Text text="Download" />
</Button>

Depending on your Button API, you can also pass an icon directly:

<Button
    text="Download"
    icon="download"
/>

Props

Prop	Type	Default	Description
`icon`	`IconName`	`undefined`	The name of the icon to display.
`color`	`Color3`	`Color3.fromHex("#FFFFFF")`	The color applied to the icon image.
`scale`	`ScaleSize`	`theme.default.scale`	Selects the icon size from `theme.iconSize`.
`Size`	`UDim2`	Theme icon size	Overrides the size calculated from `scale`.
`Rotation`	`number \| Binding<number>`	`0`	Rotates the icon in degrees or binds it to an animated value.
`spinning`	`boolean`	`false`	Continuously rotates the icon.
`speed`	`number`	`1`	Duration, in seconds, of one complete rotation. Only used when `spinning` is enabled.

Icon resolution

The component resolves an icon using the following order:

The active theme's icons collection.
DefaultIconSet.

Conceptually, the lookup behaves like this:

const iconId =
    props.icon === undefined
        ? undefined
        : theme.icons[props.icon] ?? DefaultIconSet[props.icon];

This allows a theme to replace individual icons while continuing to use the default icon set for any icons it does not override.

Theme configuration

Icon sizes are read from the active theme's iconSize property.

const theme = {
    default: {
        scale: "md",
    },

    iconSize: {
        xs: 12,
        sm: 16,
        md: 20,
        lg: 28,
        xl: 36,
    },
};

With this theme, the following icon renders at 28 × 28 pixels:

<Icon icon="settings" scale="lg" />

A theme can also replace icon asset IDs:

const theme = {
    icons: {
        check: 1234567890,
        close: 9876543210,
    },
};

Only the overridden icons need to differ from DefaultIconSet.

Available icons

The icon prop accepts any value from the exported IconName type.

Some commonly used icons include:

Actions

<Icon icon="check" />
<Icon icon="times" />
<Icon icon="plus" />
<Icon icon="minus" />
<Icon icon="edit" />
<Icon icon="trash" />
<Icon icon="save" />
<Icon icon="download" />
<Icon icon="upload" />
<Icon icon="refresh" />

<Icon icon="home" />
<Icon icon="bars" />
<Icon icon="chevron-left" />
<Icon icon="chevron-right" />
<Icon icon="chevron-up" />
<Icon icon="chevron-down" />
<Icon icon="arrow-left" />
<Icon icon="arrow-right" />

Status

<Icon icon="info-circle" />
<Icon icon="question-circle" />
<Icon icon="exclamation-circle" />
<Icon icon="exclamation-triangle" />
<Icon icon="check-circle" />
<Icon icon="times-circle" />

Users

<Icon icon="user" />
<Icon icon="users" />
<Icon icon="user-plus" />
<Icon icon="user-times" />
<Icon icon="user-circle" />

Media

<Icon icon="play" />
<Icon icon="pause" />
<Icon icon="stop" />
<Icon icon="forward" />
<Icon icon="backward" />
<Icon icon="volume-up" />
<Icon icon="volume-down" />
<Icon icon="volume-off" />

Interface

<Icon icon="cog" />
<Icon icon="search" />
<Icon icon="filter" />
<Icon icon="calendar" />
<Icon icon="clock-o" />
<Icon icon="bell" />
<Icon icon="envelope" />
<Icon icon="folder" />

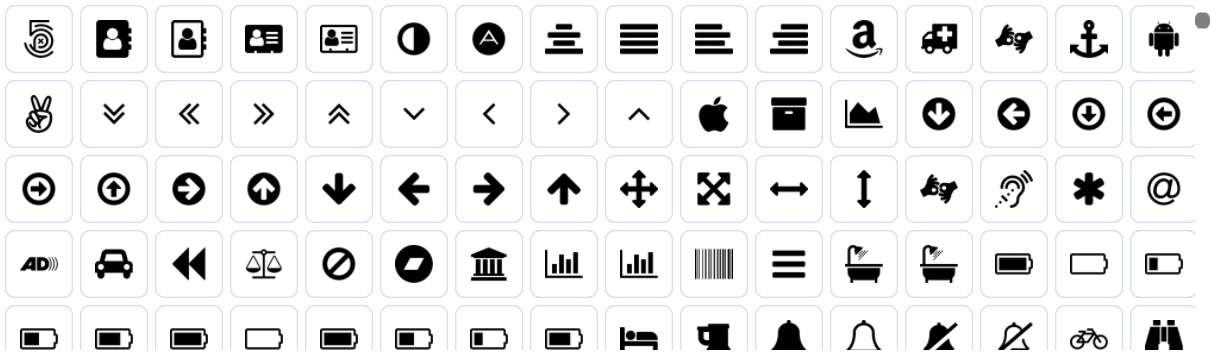

Rendering an icon gallery

Because IconName is a TypeScript union type, it cannot be directly iterated at runtime. To build an icon browser, iterate over DefaultIconSet instead.

const icons = new Array<IconName>();

for (const [icon] of pairs(DefaultIconSet)) {
    icons.push(icon);
}

icons.sort((a, b) => a < b);

return (
    <Scroller>
        <frame
            BackgroundTransparency={1}
            Size={UDim2.fromScale(1, 0)}
            AutomaticSize={Enum.AutomaticSize.Y}
        >
            <uigridlayout
                CellSize={UDim2.fromOffset(160, 64)}
                CellPadding={UDim2.fromOffset(8, 8)}
                SortOrder={Enum.SortOrder.LayoutOrder}
            />

            {icons.map((icon, index) => (
                <frame
                    key={icon}
                    LayoutOrder={index}
                    BackgroundTransparency={1}
                >
                    <HStack spacing="sm">
                        <Icon icon={icon} />

                        <Text
                            text={icon}
                            variant="label"
                        />
                    </HStack>
                </frame>
            ))}
        </frame>
    </Scroller>
);

Notes

When icon is undefined, the underlying Image property is also undefined.
Size overrides the size provided by the theme.
speed only affects icons with spinning enabled.
A spinning icon uses an infinite linear tween from 0 to 360 degrees.
Theme icon overrides automatically fall back to DefaultIconSet.
Use circle-o-notch, spinner, refresh, or cog for common spinning indicators.
